Name: Solid Conductor Leads Termistor 10k Ohm NTC Temp Sensor, NTC Thermistors
Brand: Shenzhen Hwalon Electronic Co., Ltd.
SKU: MF52
Price: 0.09 USD
Availability: InStock

Rumah Produk Sensor Suhu Termistor NTC

Solid Conductor Leads Termistor 10k Ohm NTC Temp Sensor, NTC Thermistors

Detail produk:

Tempat asal:	Cina
Nama merek:	HWALON
Sertifikasi:	CE
Nomor model:	MF52

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1000 pcs
Harga:	0.09-0.15USD
Kemasan rincian:	Karton
Waktu pengiriman:	7-15 hari
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	100000pcs/hari

Kontak

Detil Deskripsi produk

Gaya:	Jenis kaca atau epoksi	nilai B:	3380, 3435, 3950, 3977
Perlawanan:	1k ~ 1m ohm	Toleransi:	1%, 2%, 3%, 5%
kisaran suhu:	-40 ~ 150 ° C, -40 ~+250 ° C.
Menyoroti:	10k Ohm NTC thermistor , NTC temperature sensor with leads , solid conductor thermistor sensor

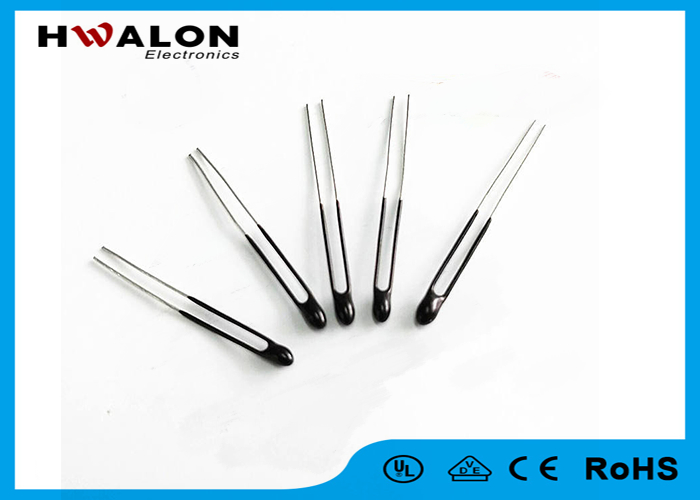

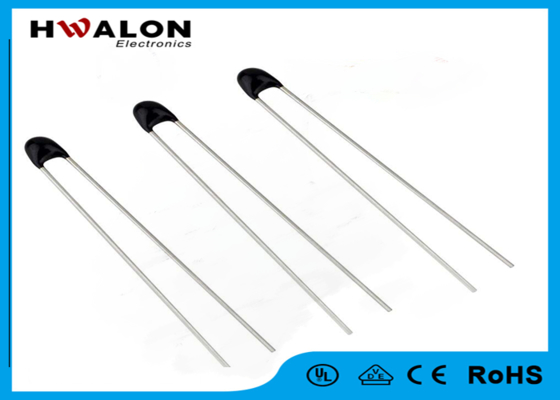

Solid Conductor Leads Termistor 10k Ohm NTC Temp Sensor, NTC Thermistors

Product Information:

◆ Epoxy and glass encapsulation available.
◆ High accuracy / interchangeability.
◆ Custom size and wire configuration.
◆ Fast thermal response time.
◆ Proven long-term stability and reliability.
◆ Available in temperature ranges from -40ºC to +250ºC.
◆ Tailored resistance versus temperature.

Product Details:

PARAMETER	OPTIONS	UNIT
Resistance @ 25°C	1, 4.7, 5, 8, 10, 12, 20, 30, 47, 50, 100, 1000	kohms
Resistance Tolerance	1, 2, 3, 5	%
Beta Value	3435, 3950, 3977, 3984, 4000	K
Temperature Range	-40 to +150; -40 to +250	°C
Thermal Time Constant	< 10	s
Temperature Coefficient Resistance	-4.4	%/°C
Max Power	30	mW
Dissipation Constant (in air)	2	mW/K
Wire Material	Copper, Tinned CCS, PVC, Teflon, etc.	mm

Application:

◆ Ambient temperature sensing, control and compensation.
◆ Liquid or gas temperature control and monitoring.
◆ Assembly into probes.
◆ Automotive (Air Conditioning, Cabin Climate Control/Management, Heated Seats).
◆ Industrial applications.
◆ Computer and Communications Industry.
◆ HVAC, White Goods, Military.
